Description

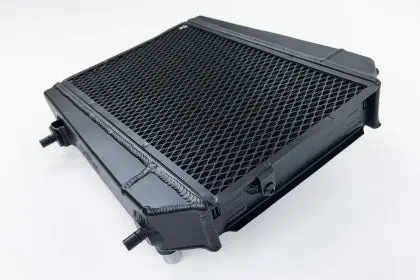

Engineered Cooling for Pushed S58 Builds
Compared to the OEM G8X coolers, the CSF units are a significant upgrade. The TIG welded aluminum tanks are much larger than the OE plastic tanks offering superior strength and fluid volume. A larger 2-row 42mm core increases cooling efficiency and capacity. This high efficiency core uses CSF’s Exclusive B-Tube Technology and latest 5mm fin technology, maximizing airflow and heat dissipation. These 5mm fins significantly increase the heat exchange surface area improving overall cooling efficiency and recovery while still maintaining good airflow.
Features and Benefits
- Sold Individually – all applications use 2 auxiliary radiators
- Multi-Fit – Fits Both Left & Right Side
- 2-Row – 42mm High-Performance Core Featuring CSF’s Exclusive B-tube Technology
- Ultra Efficient 5mm Tall Fins with a Multi-Louvered Design for Maximum Surface Area Contact
- Tank Volume and Core Size Increased
- 100% All-Aluminum TIG-Welded Construction
- OEM Style “Quick Connect” Inlet/Outlet
- True “Drop-in Fit” Requires No Modifications to Install
- Includes Detachable Rock Guard
- Individually Leak and Pressure Tested
- High-Performance Upgrade Suitable for Professional Racing, Street Performance, or OEM Replacement
- Satin Black Finish for OEM+ Look
- 2 Year Limited Warranty
Description:CSF BMW G8X M3/M4/M2 High-Performance Auxiliary Radiator – Single RadiatorTitle:BMW G8X M3/M4/M2 High-Performance Auxiliary RadiatorCore Width:282mmRadiator Cap Included:NoOutlet Connector Type:Slip OnInlet Connector Type:Slip OnDown Flow Or Cross Flow Type:Down FlowInternal Engine Oil Cooler:NoInternal Transmission Oil Cooler:NoOutlet Location:Bottom RightInlet Location:Top RightOutlet Diameter:16.3mmInlet Diameter:16.3mmCore Row Quantity:2Core Thickness:42mmCore Material:AluminumCore Height:190mmMounting Hardware Included:NoThermostat Included:NoTank Material:AluminumMounting Type:Mounts with OE HardwareFrame Included:NoCoolant Hose Outlet Connection Type:OE Type ConnectionCoolant Hose Inlet Connection Type:OE Type ConnectionInstallation Type:Drop-In Fit InstallationFinish/Color:BlackProp 65 Yes/No:NoGrade Type:Performance
