Backed by our 3-year guarantee

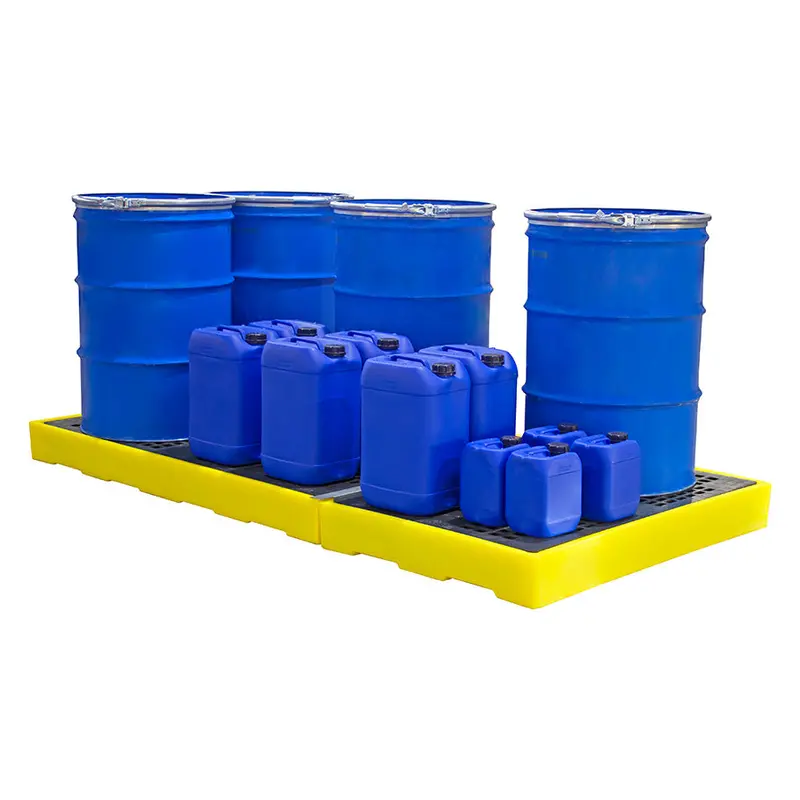

A low profile 6-drum sump floor is only 150mm high moulded from medium-density polyethylene. The BF6 is comprised of 2 separate units, our BF4 & BF2, connected using our joining strip & optional sump connector. This can be further joined with other units to create unlimited bunded areas. The units can be joined together with plastic connectors to inter-link the sumps with the BF4 injection moulded mesh floor having a 2000kg static weight load & the BF2 mesh floor having a 1000kg weight load. Each unit comes with separate removable grids (3 total – BF4 2 & BF2 1). Optional ramps are available for easier decanting.
The sump will not include pre-drilled holes. Please see the ‘BF6 Configuration’ document for instructions.
You will require an appropriate size/capacity fork lift truck to offload this item from the delivery vehicle. Our standard delivery doesn’t include any offloading.
All sumps hold 110% of the capacity of the largest container or 25% of the total capacity stored, whichever is greater.
Specifications
| Length | 2520mm (BF2 860mm & BF4 1660mm) |
| Width | 1260mm |
| Height | 150mm |
| Weight | 58kg (BF2 20kg & BF4 38kg) |
| Nº of containers | 6 x 205ltr |
| Sump | 430ltr (BF2 130ltr & BF4 300ltr) |
| UDL | 3000kg (BF2 1000kg & BF4 2000kg) |
| Approval | DIBt Z-40.22-398 |
